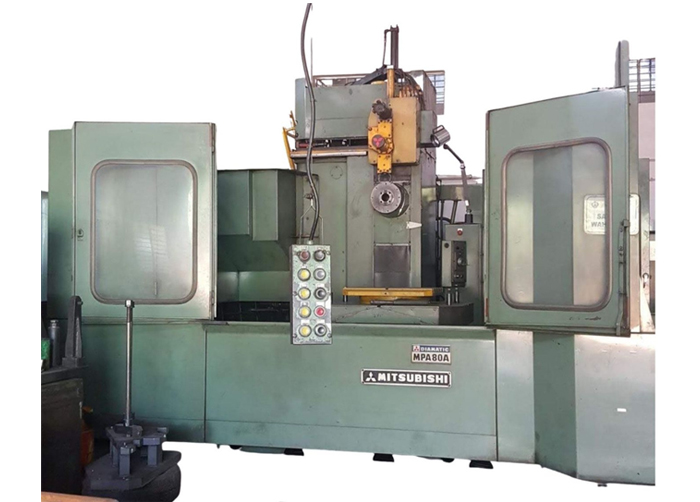

Horizontal Machining Center Mitsubishi MPA 80A
Pallet = 1000 x 1000mm Twin
Index = 360 x 1° min
Loading Capacity = 2000Kg. Max. each Pallet
X-axis Travel = 1500mm
From Spindle Centre = ± 750mm
Y-axis Travel = 1000mm
Above Table = 0 - 1000mm
Z-axis Travel = 800mm
Between Spindle & Table Centre = 350 - 1150mm
ATC: - 60 Tools Magazine
CNC System: - Fanuc 6M model B
Spindle Nose Taper: - BT-50
(7/24 Taper) JIS B6101 No.50
Speed 20 – 2000 RPM Infinitely Variable

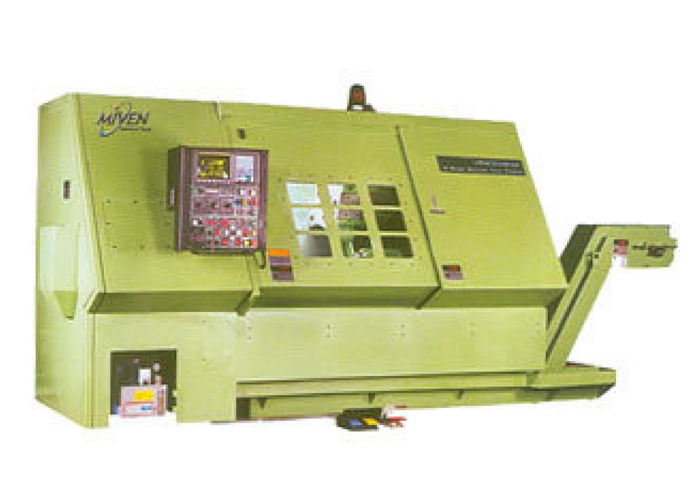

CNC Turning Center Miven Warner & Swasey WSU-12
Main Spindle = A2 – 8
Chuck Size = Ø 315mm
Hollow Hyd. Actuation
Max. Turning Dia between
Centers = Ø 380mm
Max. Turning Dia Chucking = Ø 600mm
Max. Turning Length = 1000mm
Spindle Speed Range = 30 - 3000rpm
Infinitely Variable
Spindle Power Rating = 18.5/22 kW
Rapid Traverse = 12 M/min
Turret = 12 Station W & S Drum Type
Tail Stock = MT-4 Programmable
CNC System = Fanuc Oi TA
Color Display with AC unit
Steady Rest = Ø 30 - Ø 150mm Hydraulic Programmable

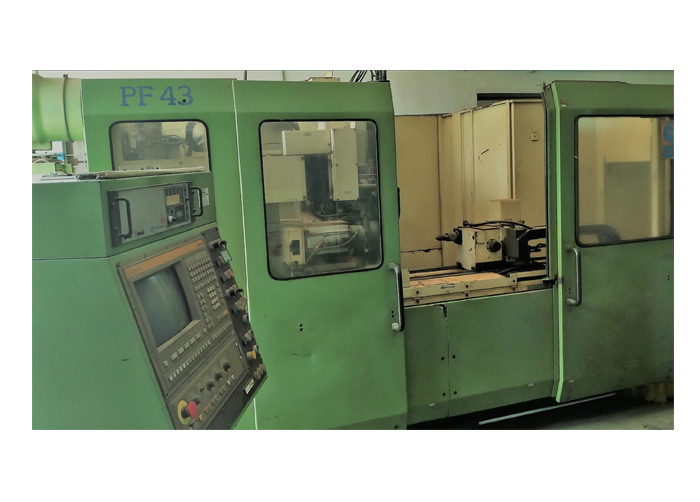

CNC Grinding Center
Schaudt PF - 43
Height of centre = 180mm
Centre Distance = 1000mm
Maximum Dia = Ø 350mm
Max. Job Length Straight Plunge = 1000mm
Max. Job Length 30° Angular Plunge = 750mm
Table Travel = 1300mm
X-Axis resolution = 0.0005mm
CNC Controller = Siemens 820Ga3
Max. Job Weight = 200 Kgs.
Measuring Probe = SCHAUDT Diatronic
Measuring range = Ø 10mm to Ø 170mm
Gauging Unit = MARPOSS E5
Wheel Head Swivel = 0 - 180°
Programmable 0.001° Min. Increment
Wheel Head Speed = 20 – 45 M/Sec
infinitely variable
Work Head Speed = 1 – 1200rpm
Tail Stock Taper = MT – 4 Hydraulic
Wheel Balancing = SBS Hofmann Dynamic
On-Line Hydrokompenser hk-5000.
Coolant System = BEDA Paper Band Filter

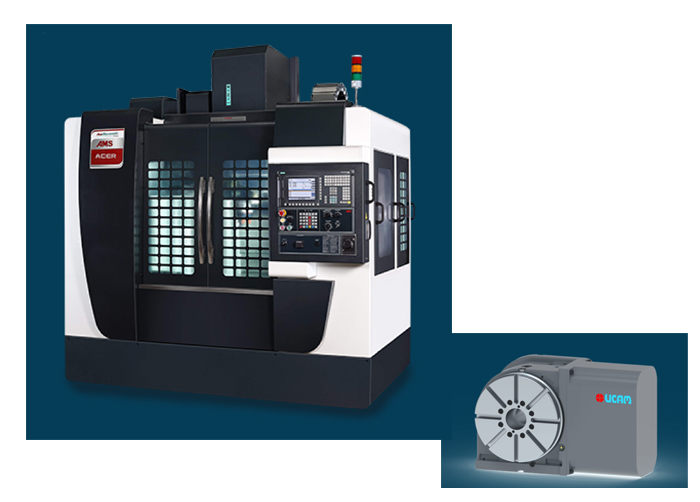

Vertical Machining Center AMS ACER
Table = 1000 x 510mm
Loading Capacity = 500Kg. Max.
X/Y/Z axis Travel = 800/510/500mm
Distance Between Spindle & Table = 175 - 675mm
4th Axis = UCAM URX-250 Continuous Rotary Table
ATC: - 24 Tools Magazine
CNC System: - Fanuc 0i MF +
Spindle Nose Taper: - BT-40 (7/24 Taper) JIS B6101 No.40
Speed 20 – 6000 RPM Infinitely Variable
Cyl. Grinding Matrix GU - 33 x 1650
Height of Centre = 170mm
Centre Distance = 1650mm
Max. Dia = Ø 330mm
Max. Job Weight = 500 Kgs.
Work Head Taper = MT – 5
Tail Stock Taper = MT – 4 Manual
Table travel = 1800mm
Table angular adjustment = 0 - 8°
Work Head Speed = 14 – 200 rpm
infinitely variable
Coolant System = DARENTH Paper Band Filter

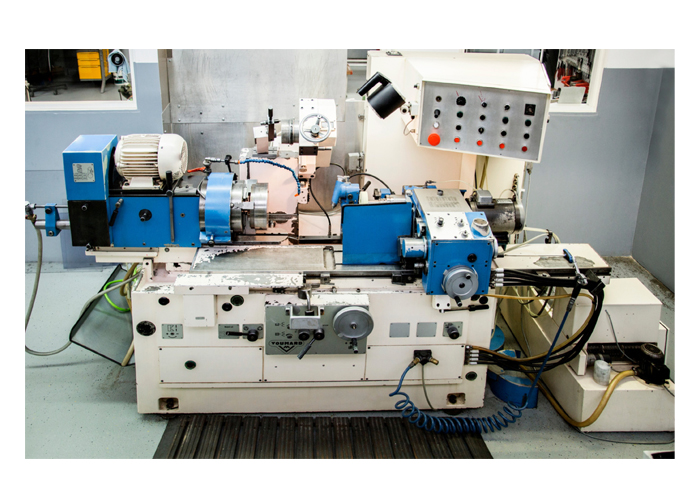

VOUMARD 5A LP 1500
Hole Dia Max / Min = Ø 200mm / Ø 5mm
Height of centre = 180mm
Workpiece length = 1500mm Max.
Chuck = Reishauer Ø200 RHF-195
Workhead swivel angle with
facing attachment = 0 - 25°
Maximum Diameter inside chuck guard = Ø 300
Diameter of hole in chuck centre = Ø 50
Workhead spindle taper = 70 metric
Workhead speeds = 1 - 1440 rpm infinitely variable.
Table stroke = 3 - 600mm
Grinding spindle speeds = 3600 - 40,000 rpm

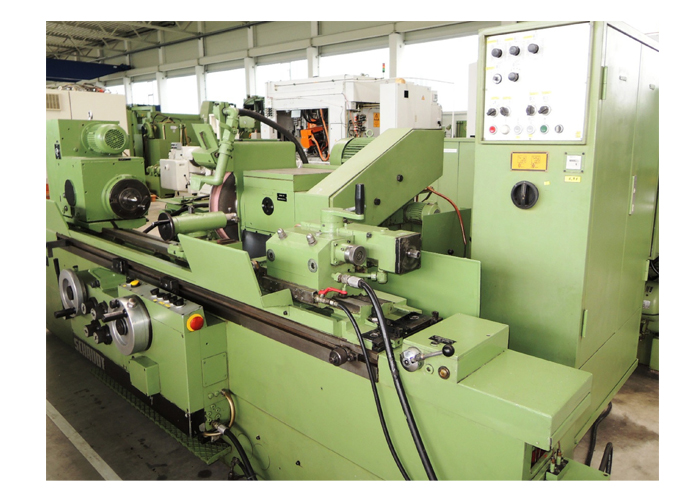

Cyl. Grinding SCHAUDT A501-N1000
Height of Centre = 170mm
Centre Distance = 1000mm
Max. Dia = Ø 330mm
Max. Job Weight = 300 Kgs.
Work Head Taper = MT – 5
Tail Stock Taper = MT – 4 Hydraulic
Table travel = 1200mm
Table angular adjustment = +9° - 6°
Work Head Speed = 14 – 200 rpm infinitely variable
Coolant System = DARENTH Paper Band Filter

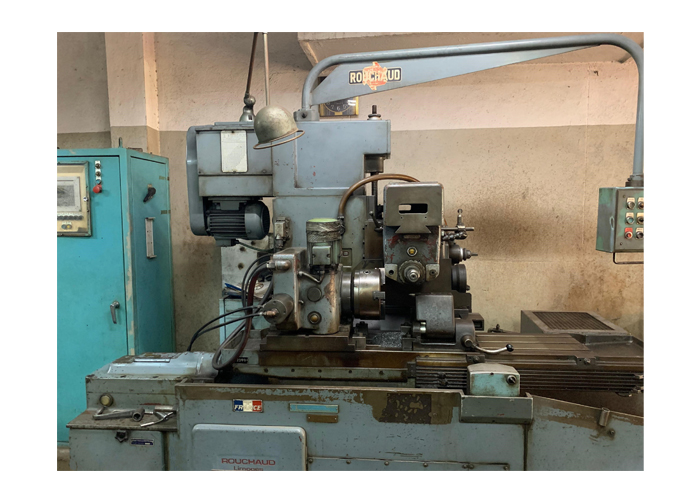

Spline Milling Rouchaud FH 60CS
Table = 1000 x 300mm
Loading Capacity = 500Kg. Max.
X-axis Travel = 600mm
Y-axis Travel = 510mm
Z-axis Travel = 50mm
Distance Between Spindle & Table = 175 - 475mm
4th Axis = Pneumatic Actuated Index Table
Index = 1, 2, 3, 4......................... 36.
Programming: - PLC System Matrix Programming
Spindle Nose Taper: - ISO-50 (7/24 Taper) DIN:2080 No.50
Spindle Speed 20 – 600 RPM
